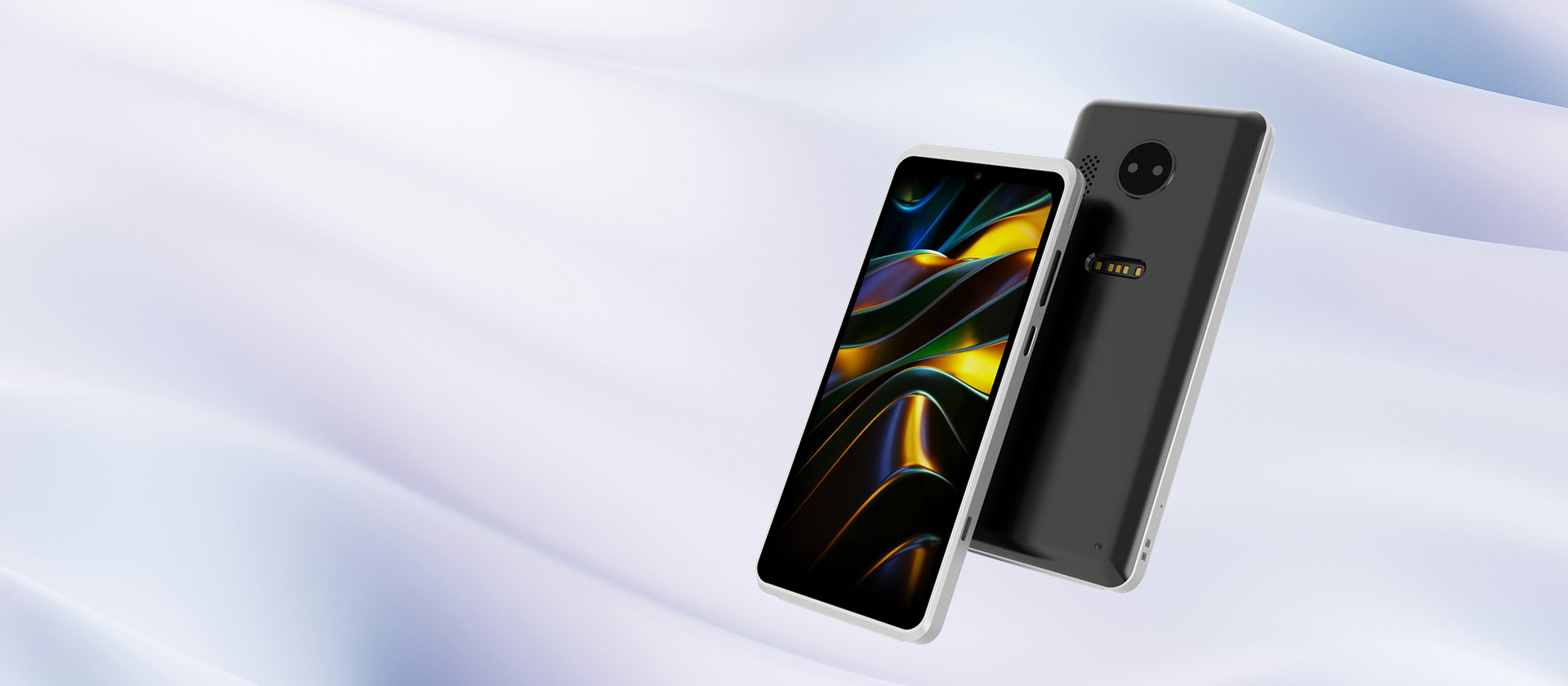

NEW9310Pro
Smart POS Terminal
Leading the new fashion of payment




CPU
Quad-core cortex A53
  • Wireless communication
    4G,3G,2G,wifi,BT
  • 6.5 inch HD screen
  • Double chamber
    2MP front 5 MP rear
  • battery
    3.8V/3000mAh
Powerful Performance, Superior Experience
A more powerful Quad-core 1.4G processor makes transactions to run seamless and faster than ever.

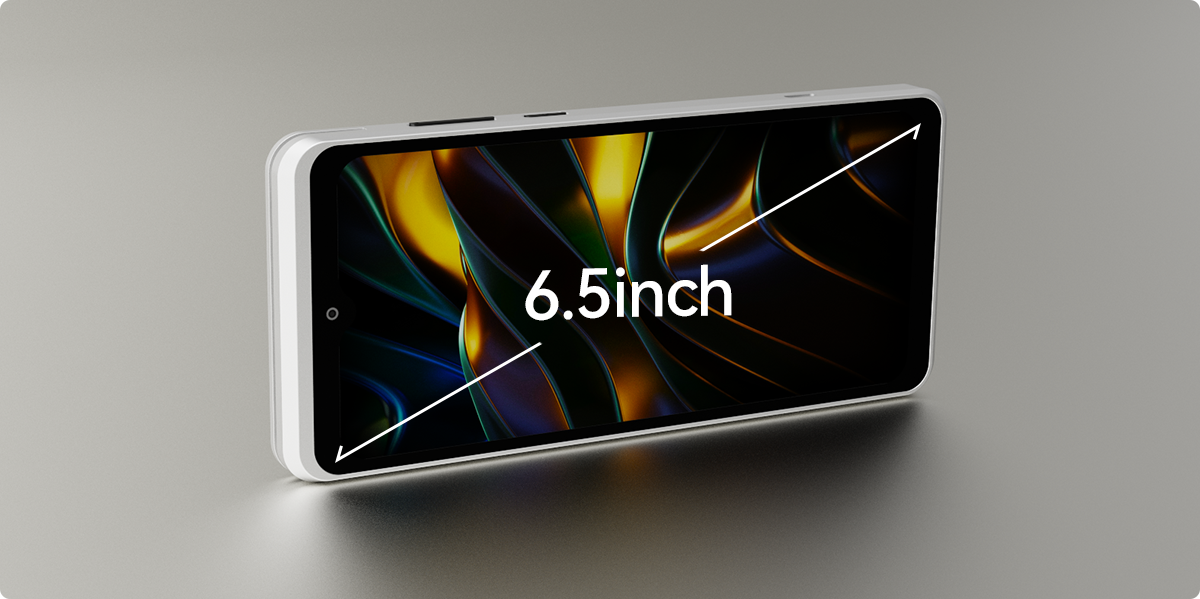

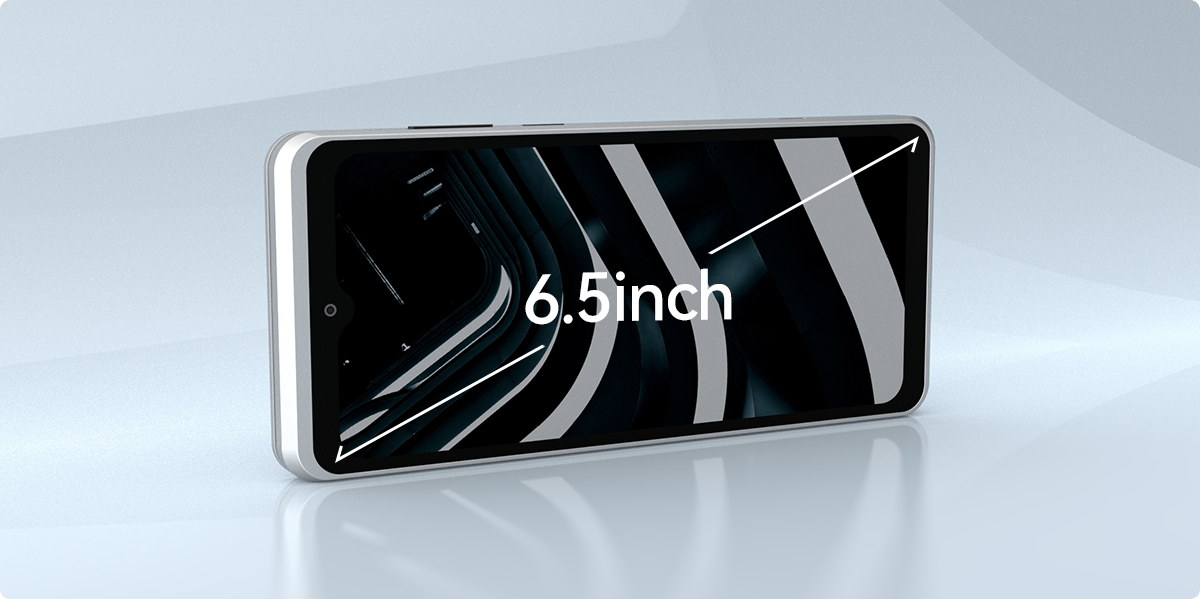

Splendid Large Screen Display
The 6.5-inch touch screen adjusts its brightness based on current lighting conditions and provides you the ultimate visual experience in any environments.

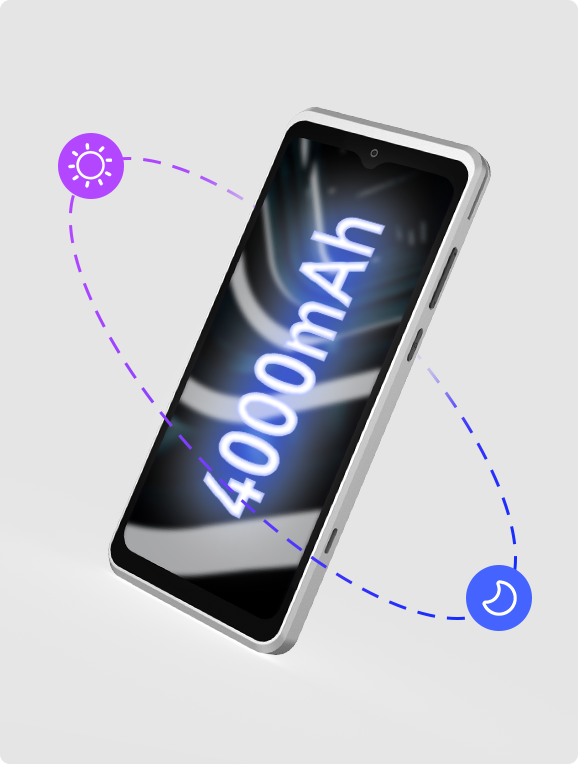

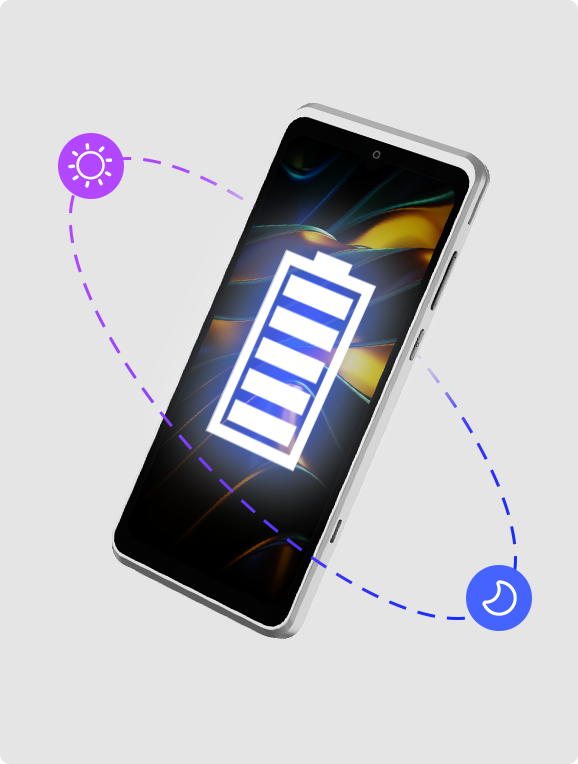

  • Extra large battery From morning to night, worry-free battery life

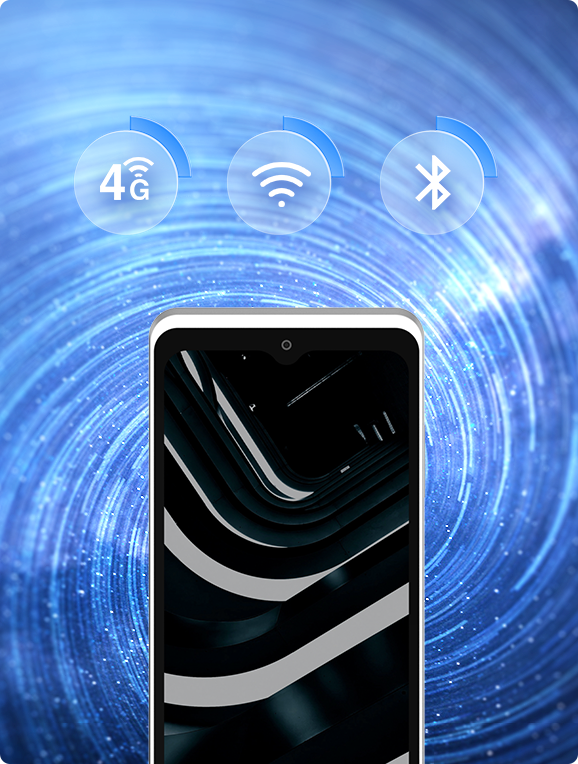

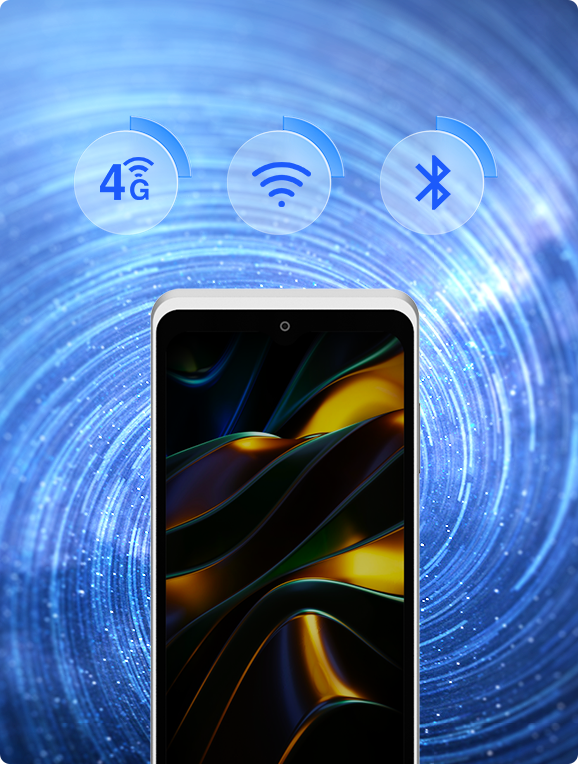

  • All Solutions For Full Connection

    With the help of solutions for full connection, you could make payment or process data rapidly and securely on the spot through: 2G/3G/4G, Wi-Fi, Bluetooth.

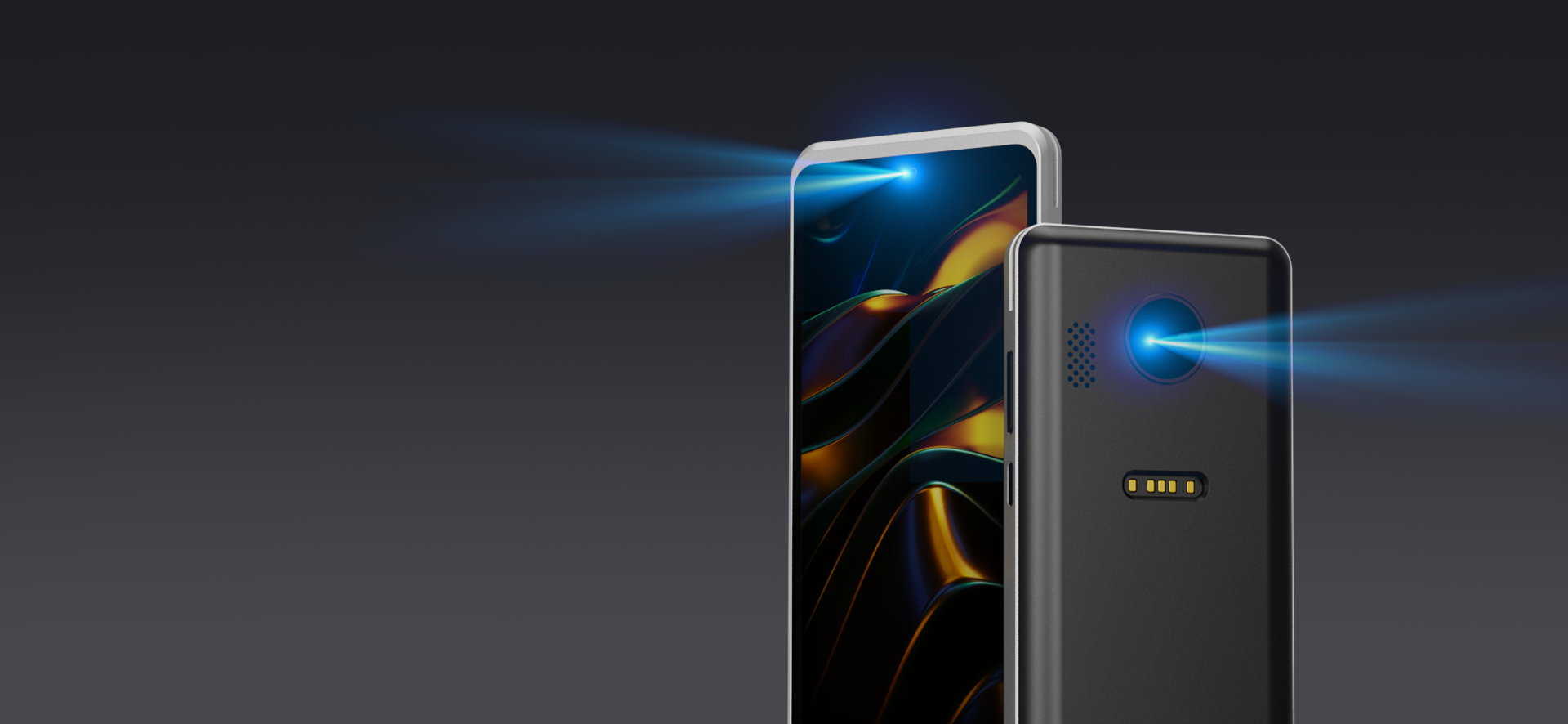

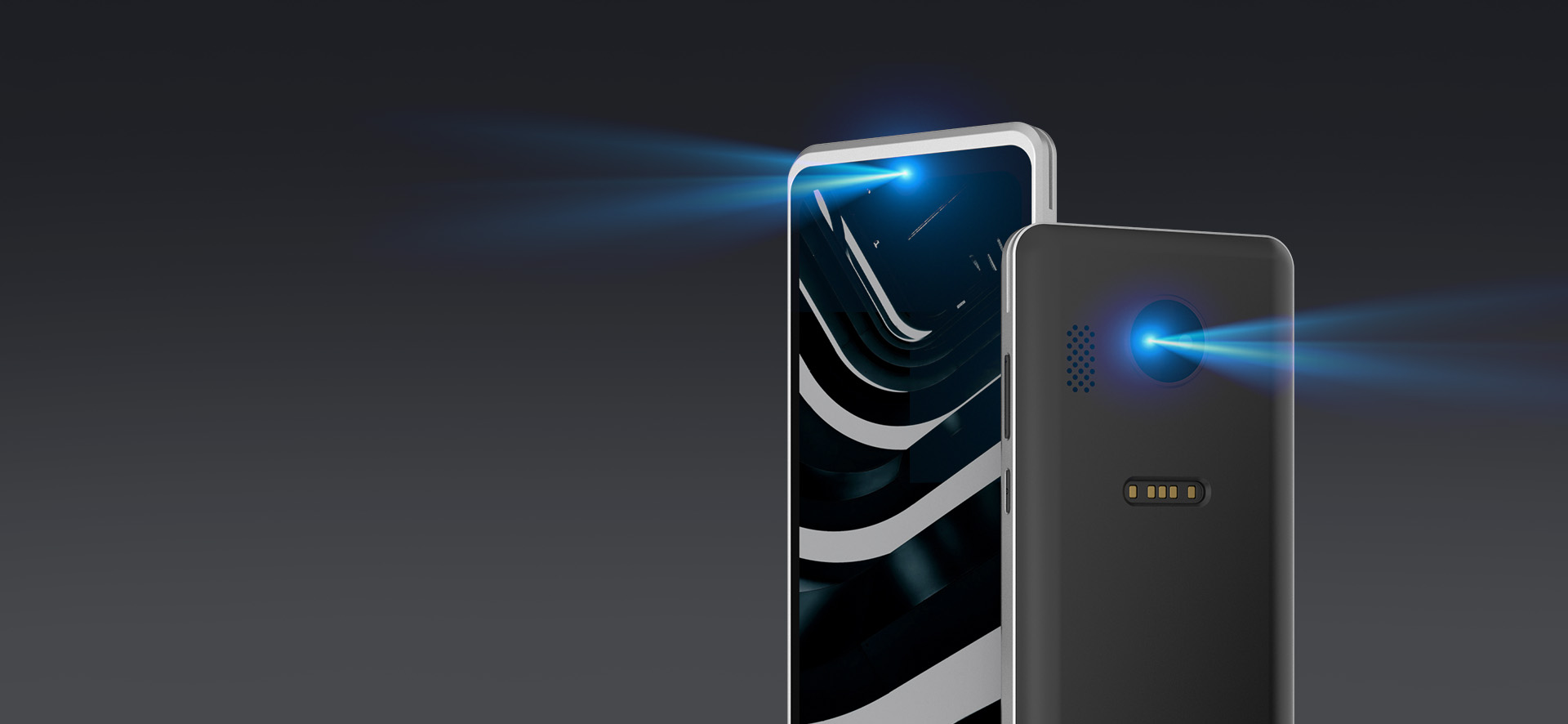

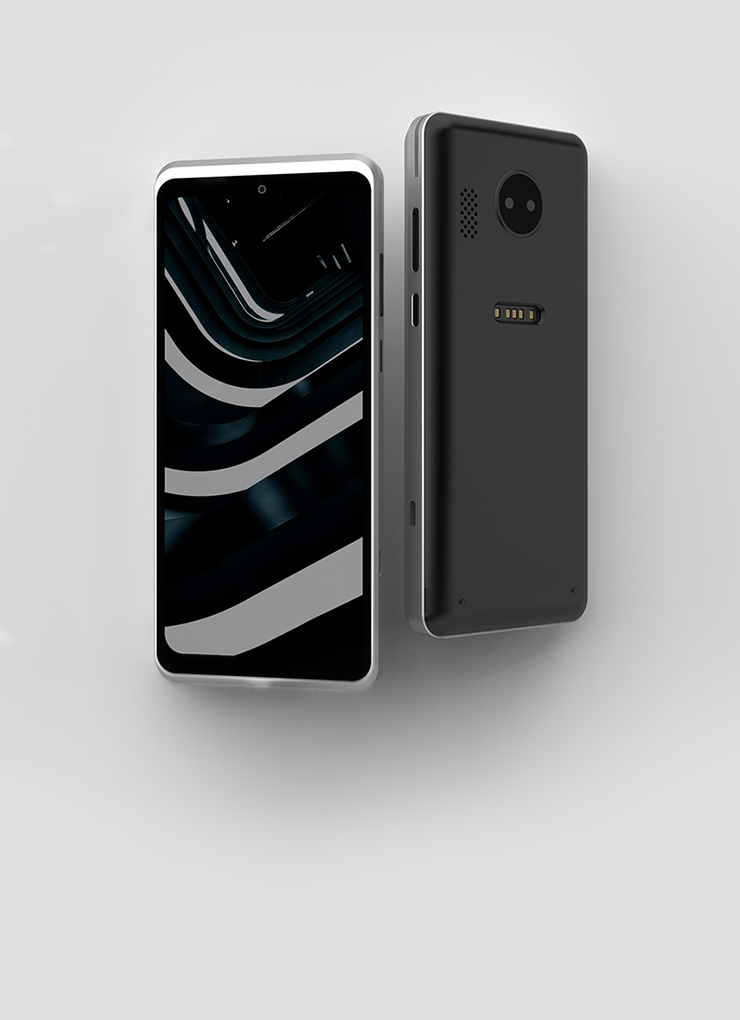

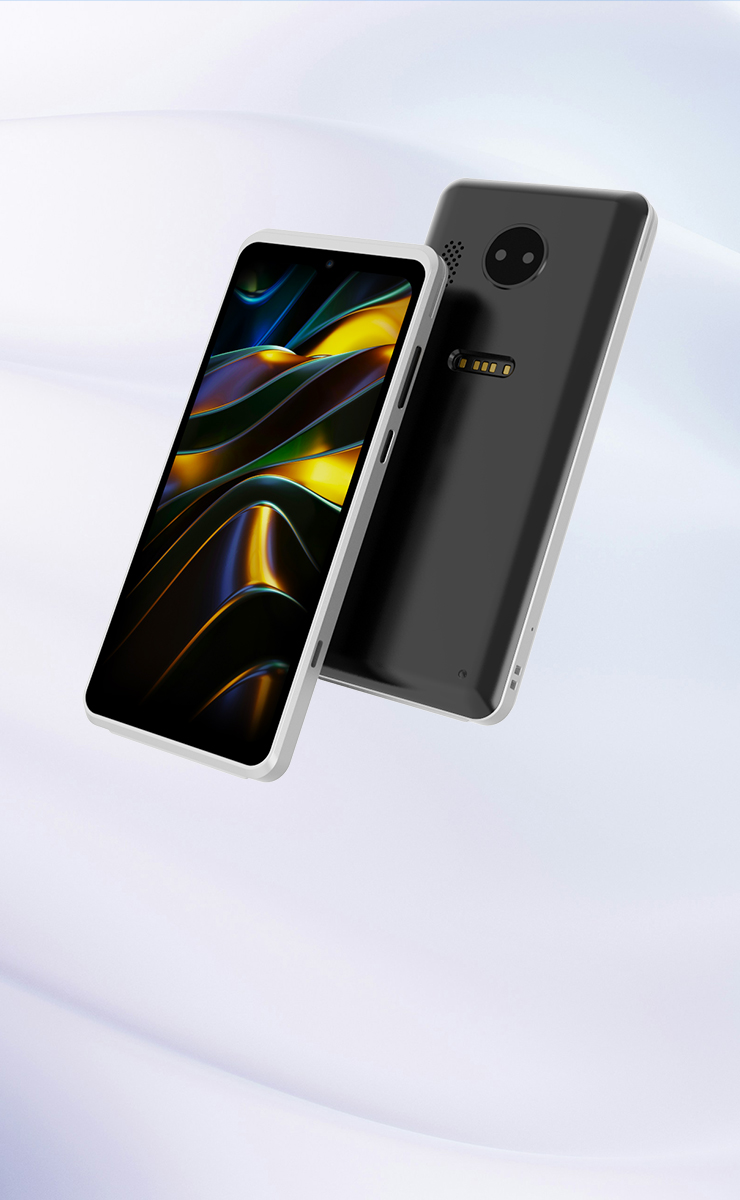

Dual Camera

2MP Front camera and 13MP autofocus rear camera catch every detail of the codes, and makes payment more rapid and safer.

  • 2MP
    Front
  • 13MP
    Rear

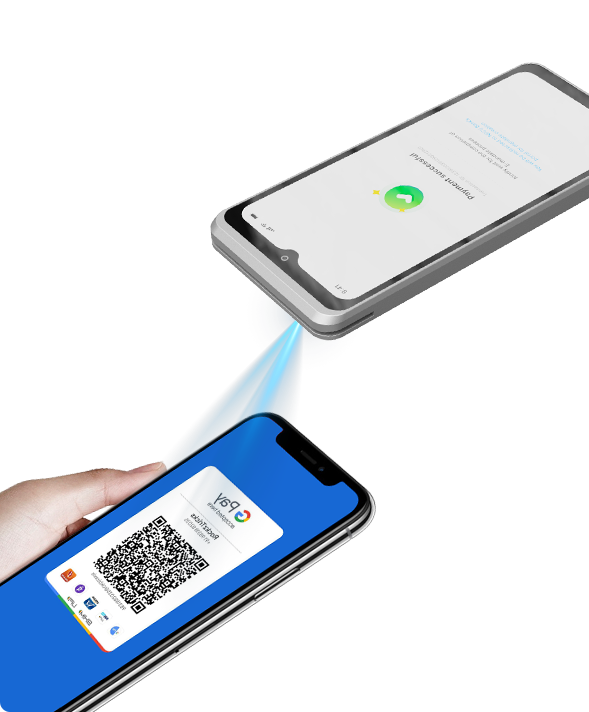

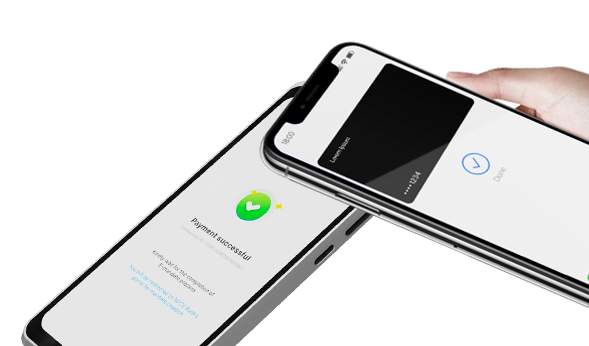

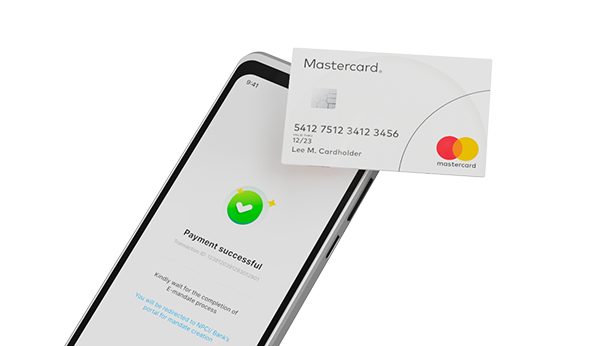

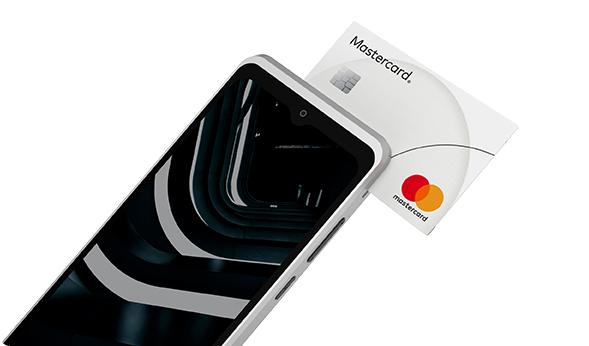

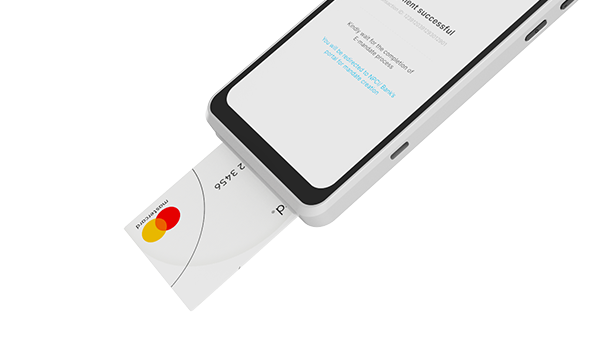

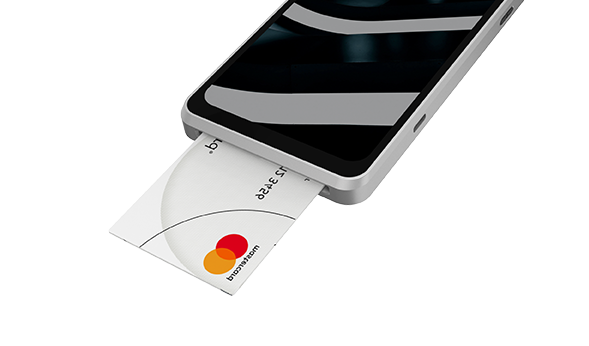

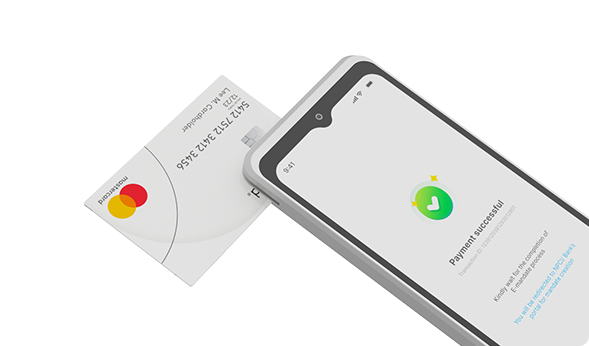

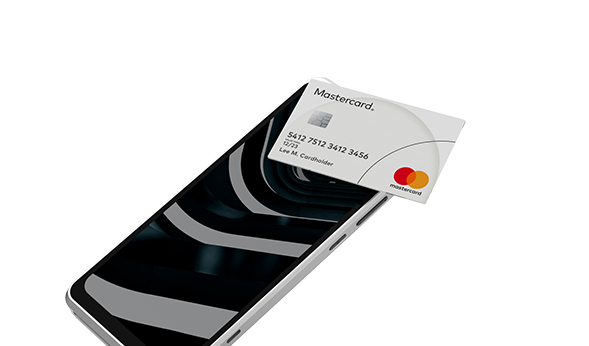

Supporting All Payments
It supports various payment methods, such as magnetic card, IC card, contactless transaction and code scanning transaction. A machine can be used for various forms, making collection simple.

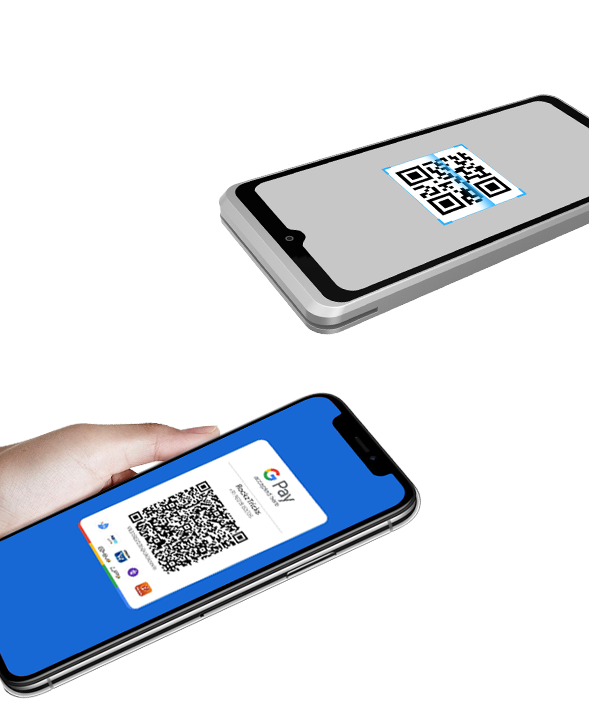

  • QR Code
  • IC Card

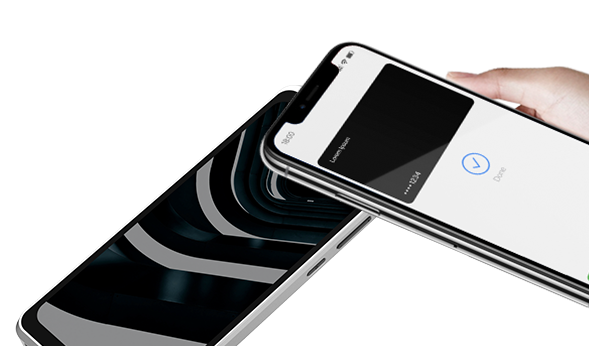

  • Contactless Card
  • Magnetic Card
  • NFC
Flexible Adaptability
Restaurants, retail, banks, government, hospitals
Specifications
  • OS
    Asmart, Powered by Android 13
  • Processor
    Cortex A53 Quad-Core, 2.0GHz + Secure Processor
  • Memory
    2GB RAM + 8GB Flash
    2GB RAM + 16GB ROM (Optional)
    Extended microSD Card Slot Up to 512GB
  • Card Reader
    Magnetic Stripe | Chip & PlN | Contactless
  • Camera
    Front: 2MP Fixed Focus
    Rear: 5MP Auto Focus, with Flashlight
    Rear: 13MP Auto Focus, with Flashlight (Optional)
  • Display
    6.5" IPS HD + 720 x 1600 Pixels
    Multi-Point Capacitive Touch Screen
  • Wireless Communication
    4G/3G/2G
    Wi-Fi (802.11 a/b/g/n)2.4G&5G
    Bluetooth 5.0
  • Battery
    3.85V/4000mAh/15.4Wh
  • Card Slots
    2 Nano SIM + 1 SAM + 1 TF
    2 Nano SIM + 1 TF(optional)
    1 Nano SIM + 1 SAM + 1 TF(optional)
    eSIM(5*6) + 1 Nano SIM + 1 SAM + 1 TF(optional)
  • Positioning
    GPS | GLONASS | BEIDOU
  • Keys / Buttons
    1 Power ON/OFF | 1 Volume+ | 1 Volume-|Secure virtual keypad for PIN entry
  • Audio
    1 Speaker
    1 Microphone (Optional)
  • Ports
    1 USB Type-C OTG | 5 PIN POGO PIN
  • Adapter
    Input: 100-240V AC, 50Hz/60Hz | Output: 5.0V DC, 2.0A
  • Physical
    173.4 x 77.5 x 16.3mm, 280g (including battery)
  • Operating Environment
    Operating Temperature: 0°C~50°C (32°F~122°F) Relative Humidity: 5%~95% (Non-Condensing)
  • Storage Environment
    Storage Temperature: -20°C~60°C (-4°F~140°F) Relative Humidity: 5%~95% (Non-Condensing)
  • Accessories (Optional)
    NEW9310Pro Base Station: 1 Power Port (Type-C|9.5V/2.5A)|1 USB Type-A|1 Ethernet(RJ45)|1 RS232(RJ11|No power supply)|5 PIN POGO PIN
  • Certifications
    PCI PTS 6.x | EMV L1 & L2 | EMV CL1 | Visa PayWave l MasterCard PayPass | UnionPay QuickPass | American Express | Discover D-PAS | JCB J/Speedy | MasterCard TQM | CE | ROHS | Felica|VCCI-b|JATE|MIC(TELEC)|GMS | IP3X
